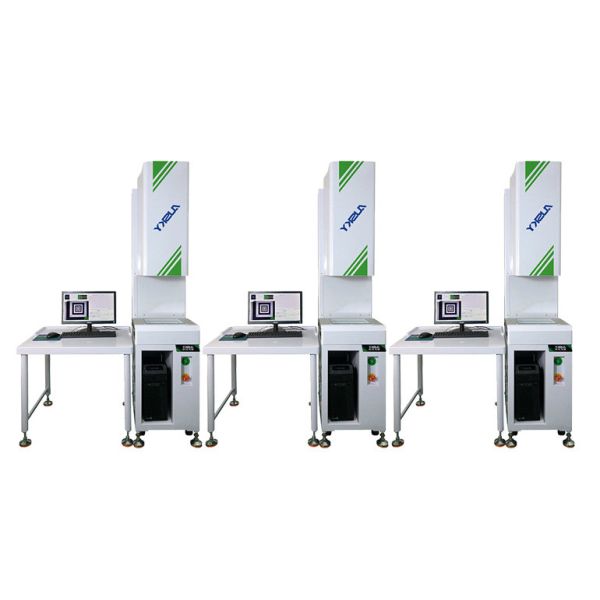

220V AC Rapid Image Measuring Instrument Vision Measuring Machine 20KG
Technical parameters:
| Model and parameter |
AMO36 |
AMO68 |
AMO100 |
AMO150 |
AMO240 |
| Iamge system |
5 million 2/3 inches |
5 million 2/3 inches, 12 million 11.1 inches, 20 million 1 inches optional |
| Light source |
According to the purpose of measurement,optional parallel bottom light, telecentric bottom light, 1-8 partition ring light, coaxial light ,etc |
| Repeatability(±μm ) |
1μm |
1μm |
1μm |
1.5μm |
2μm |
| Instrument precision(±μm ) |
2μm |
2μm |
3μm |
3μm |
4μm |
| 100 Element Measuring Time (s) |
0.2s |
0.2s |
0.2s |
0.2s |
0.2s |
| Load-bearing weight(KG) |
10KG |
10KG |
10KG |
20KG |
20KG |
| Outline dimension(mm) |
340x450x800 |
450x580x1900 |
Introduction of Software System
Our company has invested in research and development of fast image processing, concurrent algorithm, precision compensation, system framework and other aspects. We have integrated a set of high-efficiency and high-precision professional visual inspection system to meet the new demand for high-speed online full-scale inspection under the industrial environment of 4.0.
In the development process, we cooperate with foreign third-party professional visual software companies in depth, and can access third-party expansion modules such as high-speed image matching and advanced image preprocessing, which make the software have extensive non-contact industrial measurement expansion functions.
Main features:
a. Complete image metrology software functions: including the measurement of all kinds of 2D element points, lines, circles, arcs, Polylines, spline curves;
b. Complete coordinate system, structure and tolerance calculation function;
c. The function of importing and exporting CAD and offline programming;
d. High-precision sub-pixel interpolation and lens distortion compensation function;
e. Target recognition and image matching module (optional function)
f. In collaboration with other professional machine vision companies, we take the lead in introducing advanced functions such as general machine vision algorithm, image preprocessing, mosaic, morphology, miscellaneous edge and weak edge recognition, gray level variance, color difference discrimination, image template, Blob, bar code, outline recognition and comparison in metrology software; (Optional function)
g. Motion measurement module: supports on-line measurement-level high-precision detection of moving objects. (Optional function)
